Animations#
Basic Setup#
Timeline#

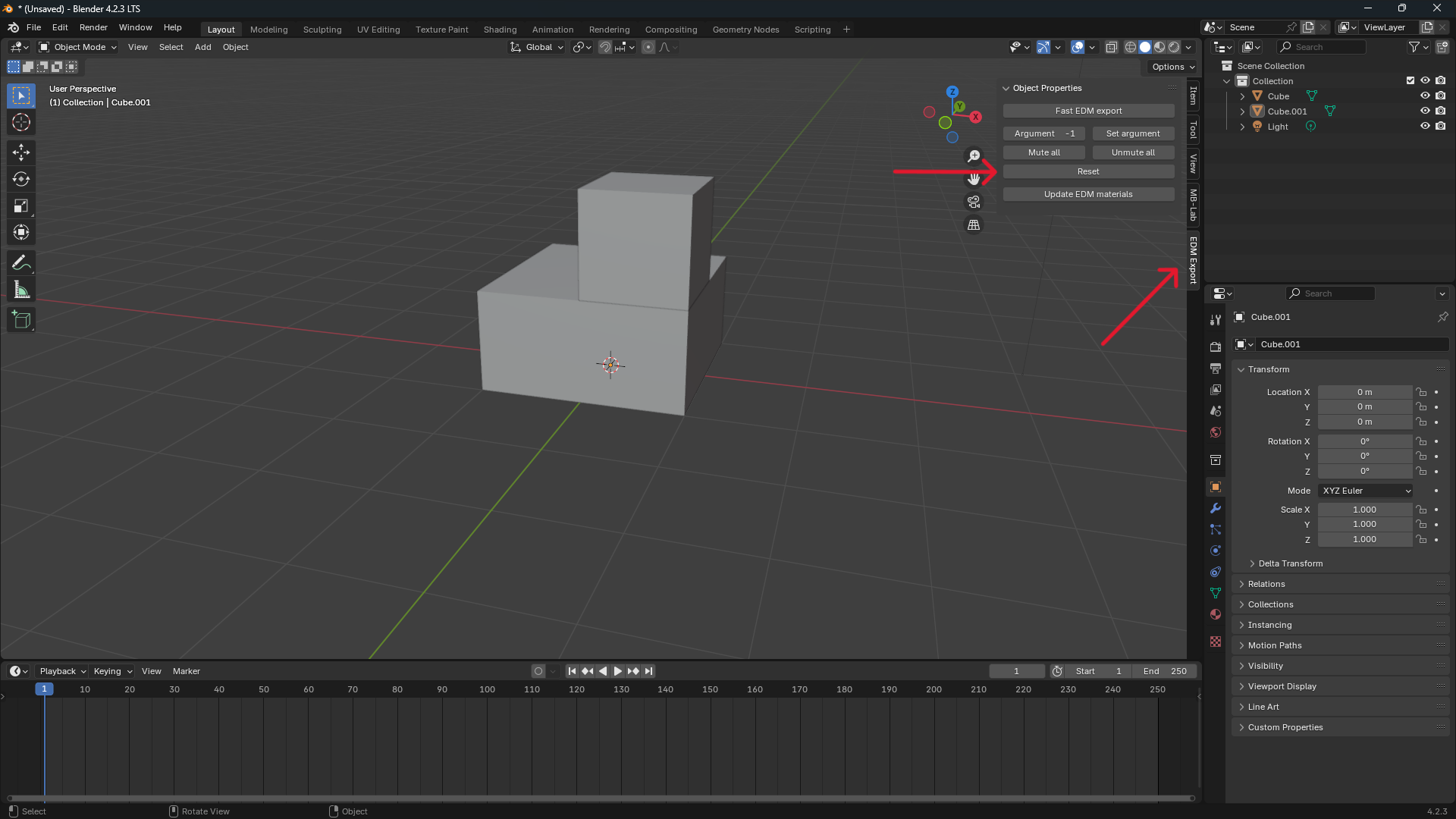

Open the EDM Export Properties Panel, and click the reset button.
This will configure blenders timeline into the required format.
You should now see the timeline change to a range of 0-200, and the timeline marker snap to 100.

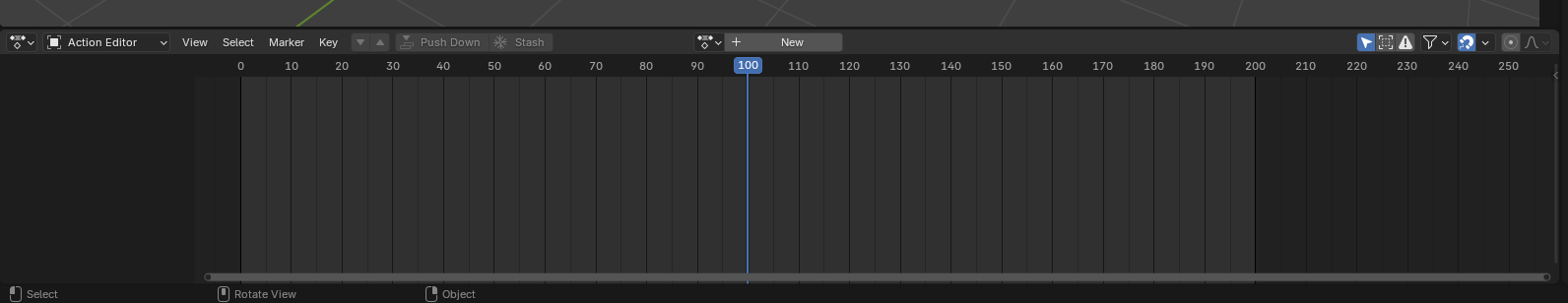

For DCS animation, I reccomend the Action editor, which can be found by selecting the dope sheet, then changing the mode to Action Editor.
Default Interpolation#
The EDM format treats the space between keyframes as linear, although by default, blender does not.
To change this, navigate to Edit > Preferences then select Animation then change Default Interpolation to Linear
Before you start animations#
It is important to apply rotation and scale before starting animations. Location does not need to be applied.
Warning
If you don't do this, you may find the resulting export have some strange translations that are not visible in blender.
Creating an Animation#
Create an Empty at a relevant point on the object you want to animate, such as an axis of rotation, or the center of an object.
Parent the mesh to be animated to the empty with CTRL + P -> Object.
Select the empty, then click on the New Button at the top of the action editor.
Name the Animation Action (by clicking the textbox that replaced the new button) to the desired arg number, then an underscore, then a description.
For example 1_Cube_Test will add the animation to arg 1 in the edm file. The desired arg number must be first in the name, anything after it makes no difference

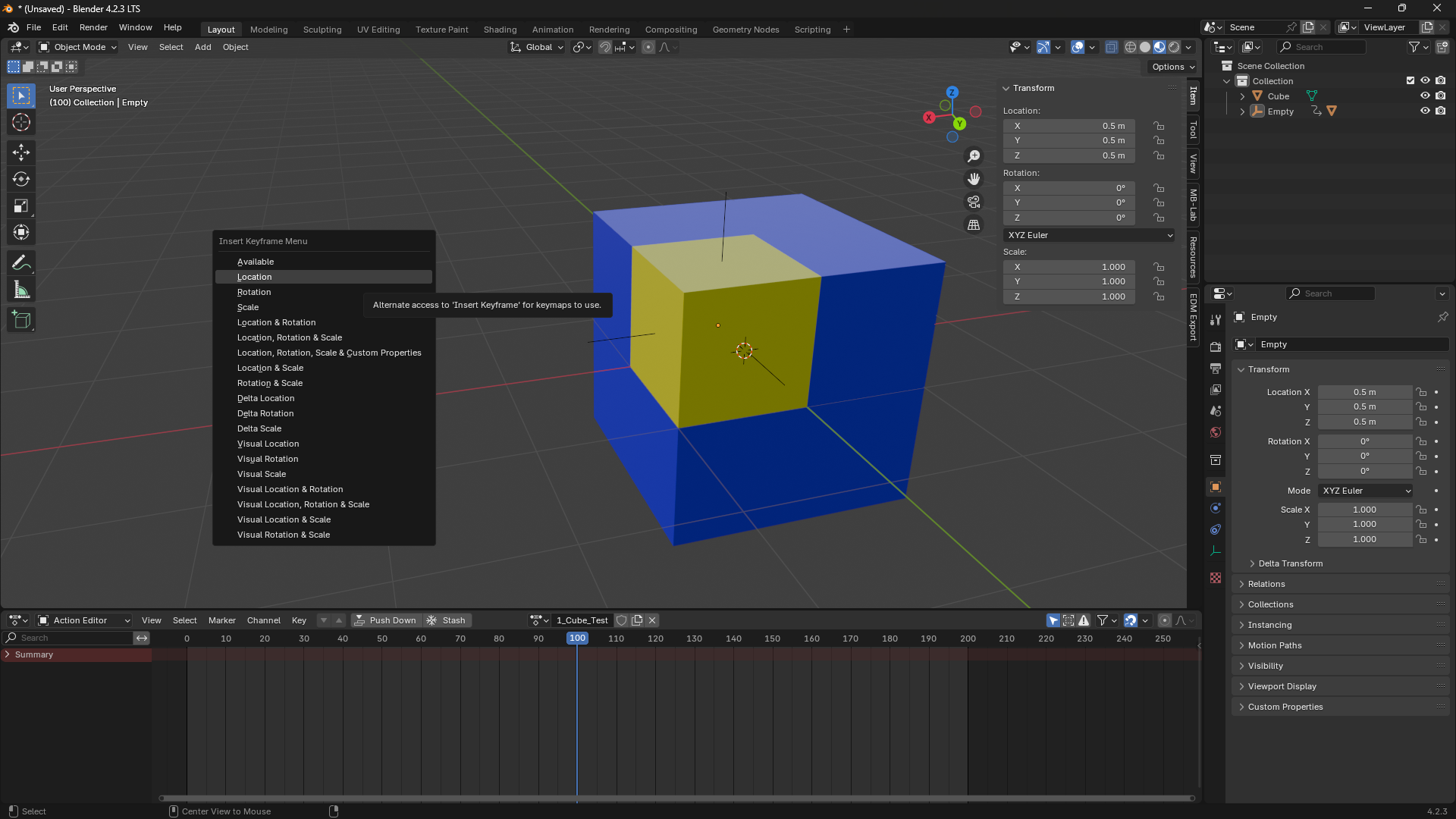

Next, with the timeline slider at 100 (DCS Arg value 0), press K (Blender 3.6 uses I) and insert a keyframe of your desired type.
Next, move the timeline slider to 200, (DCS Arg value 1) and place another keyframe. You can also add others in between like the image below
Export to EDM, and open your file in modelviewer and you should see your mesh, with a window labeled Args with your animation as a slider. Drag the slider to test your animation
Warning
Rotation Animations
If you are doing a rotation animation, ensure you set the rotation to Quaternion (WXYZ) (as seen in the image below) Before adding any keyframes, otherwise you may notice non matching rotation in your EDM file.
When doing a 180 degree or greater rotation, make sure to do keyframes at 90 degree intervals, otherwise your rotation may go the wrong direction
Download Demo File#
Animation Test
animation.blend
Skin Animations#
Hooray, ED added support for NLA tracks and multiple args per armature, documentation to come later
Warning
- Max 4 bones per deforming mesh
- Need to manually Define a bounding box or won't export
- Armature modifier needs name Armature, not anything else (not root bone, the modifier)
